OpenAPI Integration

​
Prerequisites

​
Construct Signature to Get Token

When integrating with the duix-openapi-v2 platform, you need to integrate code to generate tokens in your own platform. The method for generating tokens can be referenced in the following code:

How to Get Token

​
Management Interfaces

Management-type HTTP requests have a common convention that requires passing a token in the request header.

​

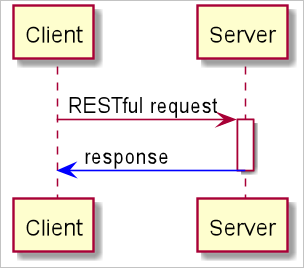

Interaction Process

​
Get APP Real-time Concurrent Number

Interface Address:

/duix-openapi-v2/sdk/v2/getconcurrentNumber

Request Method: GET

Interface Description:

Query the concurrent number under a specific APP

Parameter Description
Parameter NameTypePass MethodParameter Description
appIdStringQueryAPPID created from the platform

Response Parameters:

Parameter NameType
codeString
dataConcurrentStatus
cropIdString
totalConcurrentNumberinteger(int32)
userConcurrentNumberinteger(int32)
messageString
successboolean

Response Example:

{
  "code": "",
  "data": {
    "cropId": "",
    "totalConcurrentNumber": 0,
    "userConcurrentNumber": 0
  },
  "message": "",
  "success": true
}

​
Get APP Real-time Sessions

Interface Address:

/duix-openapi-v2/sdk/v2/getconcurrentList

Request Method: GET
Interface Description:

Query the list of “in call” sessions under a specific APP.

Parameter Description
Parameter NameTypePass MethodParameter Description
appIdStringQueryAPPID created from the platform

​
Close All Sessions of an APP

Interface Address:

/duix-openapi-v2/sdk/v2/distroyCallSessionsByAppId

Request Method: GET
Interface Description:

Close all sessions under a specific APP

Parameter Description
Parameter NameTypePass MethodParameter Description
appIdStringQueryAPPID created from the platform
Response Example:
{
  "code": "",
  "data": "",
  "message": "",
  "success": true
}

​
Close Specified Session

Interface Address:

/duix-openapi-v2/sdk/v2/sessionStop

Request Method: GET
Parameter Description
Parameter NameTypePass MethodParameter Description
uuidStringQuerysessionId field returned by the start-complete event

​
Third-party Dialog Integration (Non-streaming)

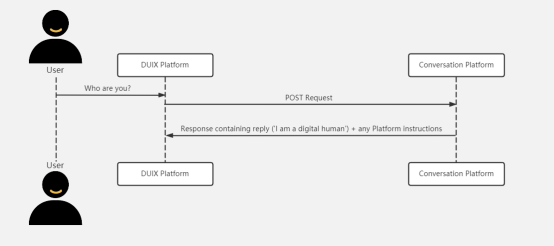

Other Session Integration: Other session platforms can be provided for digital humans to use in the following way. The DUIX platform can, through your digital human, use the POST method to request a remote URL you define to get answers to questions.
Session Platform Integration Example: You can refer to this example of session platform integration. This open-source application implements a dialogue platform integration, which implements casual conversation functionality.
Request Specification: The DUIX platform will send question requests (questions customers ask your digital human) in the following format via POST to your remote URL.
Parameter Description
FieldTypeDescriptionRequired
sidStringYour user ID, generated when creating a user. Can be viewed in account information.Y
dh-codeStringDigital human code, generated when each digital human is created, can be viewed in the digital human overview.Y
dh-questionStringThe content of the question you need to ask the digital humanY
dh-conversation-idStringConversation ID, a unique identifier for the conversationY
dh-contextStringContext information generated during the conversation, this information is a stringified JSON format data.N
Request Example:
{
  "sid": "100003",
  "dh-code": "187265485019156480",
  "dh-question": "who are you?",
  "dh-conversation-id": "0513e935-041f-48e0-9330-652ef4194511",
  "dh-context": "{}"
}

Response Specification: When you receive a question request, you need to respond in the following format.

FieldTypeRequiredRemarks
codeStringYStatus code returned
msgStringNSuccess/error description message
dataobjectNSpecific content returned
successBooleanYWhether successful

Valid Response Types:

CodeStatusResponse
200OKResponse body according to the specification below
400Bad RequestRequest body/headers are invalid
401UnauthorizedAuthentication information is invalid
403ForbiddenAuthentication failed
500Server ErrorService exception

Response Body Specification:

FieldTypeDescriptionRequired
conversationIdStringConversation ID, a unique identifier for the conversation, same as the dh-conversation-id in the request parameter body.Y
questionStringThe question asked by the user.N
answerStringThe answer to the question the user asked the digital human, this is a stringified JSON object.Y
intentStringThe intent matched by the question on the platformN
errorMsgStringDescription of the exception or errorN
extraStringAdditional information, JSON stringN
{
  "code": "200",
  "msg": "SUCCESS",
  "success": true,
  "data": {
    "conversationId": "0513e935-041f-48e0-9330-652ef4194511",
    "question": "who are you?",
    "answer": {
      "answer": "Welcome to UneeQ, how can I help?",
      "operations": {
        "tipPhrases": {
          "phrases": ["yes", "no"]
        },
        "canShowText": 1
      }
    },
    "intent": "introduce",
    "errorMsg": "",
    "extra": "{}"
  }
}

Expected Response Time: The interaction with digital humans is sensitive to latency due to their real-time nature. Therefore, response time is an important factor to consider when processing requests from the DUIX platform. These services should respond within 95% of the time within 20 seconds. If the response time exceeds 20s, the request will report a timeout error, but the digital human will continue to respond.

​
Third-party Dialog Integration (Streaming)

Other Session Integration: Other session platforms can be provided for digital humans to use in the following way. The DUIX platform can, through your digital human, use the POST method to request a remote URL you define to get answers to questions.
Session Platform Integration Example: You can refer to this example of session platform integration. This open-source application implements a dialogue platform integration, which implements casual conversation functionality.
Request Specification: The DUIX platform will send question requests (questions customers ask your digital human) in the following format via POST to your remote URL.
Parameter Description
FieldTypeDescriptionRequired
sidStringYour user ID, generated when creating a user. Can be viewed in account information.Y
dh-codeStringDigital human code, generated when each digital human is created, can be viewed in the digital human overview.Y
dh-questionStringThe content of the question you need to ask the digital humanY
dh-conversation-idStringConversation ID, a unique identifier for the conversationY
dh-contextStringContext information generated during the conversation, this information is a stringified JSON format data.N
Request Example:
{
  "sid": "100003",
  "dh-code": "187265485019156480",
  "dh-question": "who are you?",
  "dh-conversation-id": "0513e935-041f-48e0-9330-652ef4194511",
  "dh-context": "{}"
}

Response Body Specification:

FieldTypeDescriptionRequired
answerStringReturn answerY
isEndbooleanWhether to endY
{
    "answer": "Let the Cowherd and Weaver Girl meet on the Milky Way.",
    "isEnd": false
}

Expected Response Time: The interaction with digital humans is sensitive to latency due to their real-time nature. Therefore, response time is an important factor to consider when processing requests from the DUIX platform. These services should respond within 95% of the time within 20 seconds. If the response time exceeds 20s, the request will report a timeout error, but the digital human will continue to respond.

​
Get Conversation Details

Interface Address:

/duix-openapi-v2/sdk/getConversationById?conversationId=[duix platform conversation id]

Request Method: GET

Interface Description:

Query conversation details based on the conversation id created by the duix platform

Parameter Description
Parameter NameTypePass MethodParameter Description
conversationIdStringQueryconversationId created by the platform

Response Parameters:

Parameter NameTypeDescription
codeStringReturn code
dataJSONReturn data
detailDtoJSONConversation resource details (including model, background, tts)
detailDto.backgroundDtoJSONConversation resource details (background)
detailDto.modelIdStringModel ID
detailDto.modelNameStringModel Name
detailDto.modelIdTypeStringModel Type (0: Cloud Digital Human, 1: Local Digital Human)
detailDto.localModelInfoJSONLocal Digital Human Information
detailDto.backgroundDtoJSONConversation resource details (background)
detailDto.backgroundDto.backgroundUrlStringBackground Address
scriptDtoListJSONFrontend Dialog Details
scriptDtoList.scriptTypeString0 Wake-up Word, 1 Opening Line, 2 Waiting Phrase, 3 Unknown Question, 4 Farewell Phrase, 5 Interruption Phrase, 6 Interruption Sentence, 7 Guiding Phrase)
scriptDtoList.scriptContentStringFrontend Dialog Text
scriptDtoList.ttsContentStringFrontend Dialog Audio
messageStringText Prompt
successbooleanSuccess Flag

Response Example:

{
	"success": true,
	"code": "200",
	"message": "SUCCESS",
	"msg": "SUCCESS",
	"data": {
		"id": "108",
		"conversationName": "Unnamed-18:04",
		"language": "zh",
		"corpId": "1003645",
		"userId": "3959",
		"conversationConfigDto": null,
		"maxConversation": 2,
		"dataModelIsUsed": 1,
		"knowledgeIsUsed": 1,
		"fileIsUsed": 0,
		"thirdIsUsed": 0,
		"isFreedom": 0,
		"asrProvider": null,
		"conversationInfoDto": {
			"id": 109,
			"name": "1",
			"nickName": "",
			"gender": 1,
			"age": 0,
			"height": 0,
			"weight": 0,
			"characters": "",
			"backStory": ""
		},
		"detailDto": {
			"id": 95,
			"conversationId": "108",
			"proportion": "16:9",
			"terminalType": 0,
			"modelId": "321486924406853",
			"modelIdType": 0,
			"imageId": null,
			"sceneId": null,
			"modelName": "Model name",
			"sceneType": 0,
			"background": 1,
			"backgroundDto": {
				"id": 1,
				"backgroundCode": "1591003727513522176",
				"backgroundName": "zuoyi.jpg",
				"backgroundUrl": "/video-server/jpg/1592809647136509954.jpg",
				"fileType": 0,
				"proportion": "16:9",
				"userId": null
			},
			"modelConfig": null,
			"ttsId": "15",
			"ttsName": "guina",
			"ttsConfig": null,
			"ttsUrl": "",
			"ttsVolume": 0,
			"ttsSpeaker": "zhifeng_emo",
			"ttsSpeedRate": 0,
			"ttsPitch": 0,
			"ttsSource": 20,
			"samplePictureUrl": "/model/2023/02/06/c5348a17fac75feb0152a0c599b7af87.png",
			"videoWidth": 1920,
			"videoHeight": 1920,
			"humanProportion": "9:16",
			"humanWidth": 540,
			"humanHeight": 960,
			"humanX": 690,
			"humanY": 120,
			"localModelInfo": null
		},
		"knowledgeDtoList": [],
		"kbConversationDto": null,
		"modelDtoList": [
			{
				"id": 487,
				"conversationId": "108",
				"largeModelType": 0,
				"modelCode": 0,
				"largeName": "chatbot_law",
				"modelId": "1",
				"prompt": "Task: Your name is Zhang San, a real celebrity with a mischievous tone, humor, and a love for joking. Chatting with fans and friends, generating content replies in an oral style. \Requirements for generation: 1. Use my own name, 2. Meet the persona, 3. Prohibit the generation of English content, all must be generated in Chinese. 4. Within 30 words.",
				"botUrl": ""
			}
		],
		"thirdDto": null,
		"scriptDtoList": [
			{
				"id": 2728,
				"conversationId": "108",
				"scriptType": 0,
				"scriptContent": "Els silvrants",
				"ttsContent": null,
				"emotion": "0"
			},
			{
				"id": 2729,
				"conversationId": "108",
				"scriptType": 1,
				"scriptContent": "Hello, welcome to Duix",
				"ttsContent": "https://digital-public-dev.obs.cn-east-3.myhuaweicloud.com/tts-proxy/2024-02-20/1800-_-633043663081836544--FC34641E6EB0A22404C845E219904E81.wav",
				"emotion": "0"
			},
			{
				"id": 2730,
				"conversationId": "108",
				"scriptType": 2,
				"scriptContent": "Wait a moment, I'll think about it",
				"ttsContent": "https://digital-public-dev.obs.cn-east-3.myhuaweicloud.com/tts-proxy/2024-02-20/1630-_-633043667485855744--3F501A3CA51F4DFAFBACE254DD2E3E32.wav",
				"emotion": "0"
			},
			{
				"id": 2731,
				"conversationId": "108",
				"scriptType": 3,
				"scriptContent": "Sorry, I don't quite understand what you mean",
				"ttsContent": "https://digital-public-dev.obs.cn-east-3.myhuaweicloud.com/tts-proxy/2024-02-20/2300-_-633043669830471680--2C5A656A6FBEA2CE09037F21F3DF8434.wav",
				"emotion": "0"
			},
			{
				"id": 2732,
				"conversationId": "108",
				"scriptType": 4,
				"scriptContent": "Sorry, I don't quite understand what you mean",
				"ttsContent": "https://digital-public-dev.obs.cn-east-3.myhuaweicloud.com/tts-proxy/2024-02-20/560-_-633043672326082560--051995577E5C4B5818F952C04A7997E2.wav",
				"emotion": "0"
			},
			{
				"id": 2733,
				"conversationId": "108",
				"scriptType": 5,
				"scriptContent": "Stop talking",
				"ttsContent": null,
				"emotion": "0"
			},
			{
				"id": 2734,
				"conversationId": "108",
				"scriptType": 6,
				"scriptContent": "Okay, you can speak first",
				"ttsContent": "https://digital-public-dev.obs.cn-east-3.myhuaweicloud.com/tts-proxy/2024-02-20/1600-_-633043674196742144--FC70FD95B50E8CEC9D9151905AE13F7F.wav",
				"emotion": "0"
			},
			{
				"id": 2735,
				"conversationId": "108",
				"scriptType": 7,
				"scriptContent": "What is a digital person",
				"ttsContent": "https://digital-public-dev.obs.cn-east-3.myhuaweicloud.com/tts-proxy/2024-02-20/1080-_-633043676541358080--414A4CBCE8B52677F05DAECFD1437BD0.wav",
				"emotion": "0"
			}
		]
	}
}
